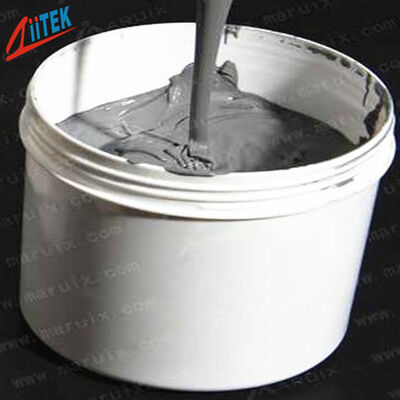

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Grande immagine :  Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Dettagli:
Luogo di origine: Cina
Marca: Ziitek
Certificazione: RoHs
Numero di modello: TIG780-50HP
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1kg
Prezzo: 0.1-10 USD/KG
Imballaggi particolari: 1kg/can
Tempi di consegna: 3-5 giorni lavorativi
Capacità di alimentazione: 100 kg/giorni
Descrizione di prodotto dettagliata
Nome dei prodotti: Pasta termica per grasso termico con buona conduttività termica per componenti elettronici IC, CPU, colore: grigio
Costruzione & Compostion: Ossido di metallo/olio di silicone Densità: 2,3 g/cm³
Conducibilità termica: 5,0 W/mK Impedenza termica((%22C-in²/W) @30 psi): 0,015
Parole chiave: Paste termiche Temp operativa consigliata: -40 ~ 200 ℃

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS



TIG®780-56 Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.



Features



> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements

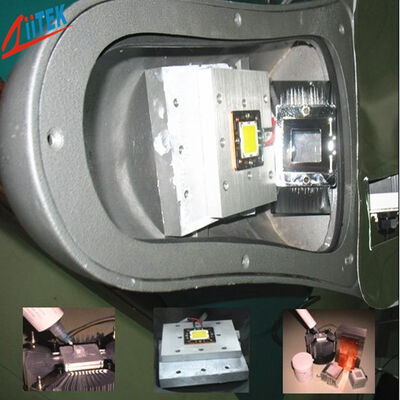

Applications lnclude


> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices



Typical Properties of TIG®780-50HP Series
Property Value Test Method
Color Gray Visual
Construction &Compostion Metal oxide / Silicone oil Ziitek Test Method
Density 2.30 g/cm³ ASTM D792
Thermal Conductivity 5.0W/mK ASTM D5470
Bond line Thickness (mm) 0.008 ASTM D374
Thermal Impedance (℃·in²/W) @30 psi 0.015 ASTM D5470
Thermal Impedance (℃·in²/W) @50 psi 0.012 ASTM D5470
Recommended Operating Temp -40℃ to 200℃ *****
Viscosity(mPa.s) 200000 GB/T 10247



Packaging Specifications


Packaging specifications: 0.5kg,1kg,2kg;

If you have any other specification requirements, please contact our company.



Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS 0

Company profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
