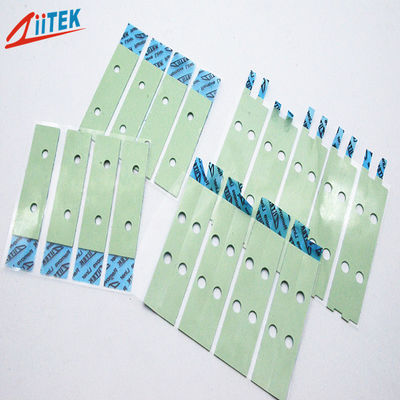

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Grande immagine :  Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Dettagli:
Luogo di origine: Cina
Marca: ZIITEK
Certificazione: UL and RoHs
Numero di modello: Serie TIF100-07S
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1000pcs
Prezzo: Negoziabile
Imballaggi particolari: 1000pcs/borsa
Tempi di consegna: 3-5 giorni di lavoro
Capacità di alimentazione: 100000pcs/giorno
Descrizione di prodotto dettagliata
Nome dei prodotti: Cuscinetto termico per radiatore 1.5W 0.5mm ~ 5.0mm Cuscinetti conduttivi per gap termico in silicon Conducibilità termica: 1,5 W/m-K
Colore: verde Campione: Campione gratuito
Spessore: 0.020" ((0.5mm) ~ 0.200" ((5.0mm) Applicazione: Radiatore di raffreddamento del veicolo New Energy
Durezza: 45 Shore 00 impiegati di uso continuo: -45 a 200°C
Parole chiave: cuscinetto termico del gap filler

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads



The TIF®100-07S Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> Easy release construction
> Electrically isolating
> High durability


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®100-07S Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Our services



Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads 1
