Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

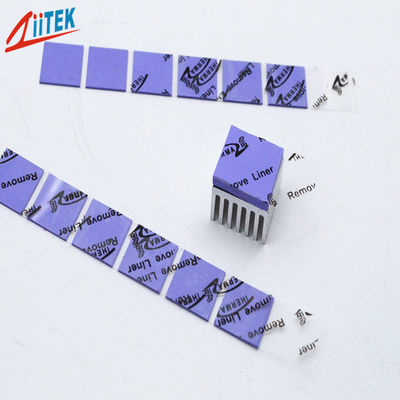

Grande immagine : Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Dettagli:

Luogo di origine:	Cina
Marca:	ZIITEK
Certificazione:	UL and RoHs
Numero di modello:	TIF100-15-16S

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000 pezzi
Prezzo:	Negoziabile
Imballaggi particolari:	1000pcs/borsa
Tempi di consegna:	3-5 giorni
Capacità di alimentazione:	100000pcs/giorno

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Cuscinetto termico in silicone di fabbrica a durezza multipla per prodotti elettrici	Colore:	Viola
Applicazione:	Dissipazione del calore dei prodotti elettrici	Conducibilità termica:	1,5 W/m-K
Costante dielettrica @1MHz:	4.0	Durezza:	45 SHORE00
Densità (g/cm³）:	2.2	Parole chiave:	cuscinetto termico del silicone

Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIF^®100-15-16S Series a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductivity: 1.5W/mK
>  Good softness and fillability
>  Self-adhesive without the need for additional surface adhesives
>  Good insulation performance

Applications

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®100-15-16S Series
Property	Value		Test method
Color	Purple		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.2		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 (0.25~0.50)	0.030~0.200 (0.75~5.0)	ASTM D374
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.5W/m-K		ASTM D5470
	1.5W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).

Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
